Whether you run a CNC manufacturing firm or are an investment in CNC machining services, understanding the processes involved in processing CNC machining projects is crucial.
From preparing materials to processing them, programming the CNC machine, monitoring production quality, and regulating the final finishing of the product or project, several processes help fulfill CNC machining operations. This comprehensive article will go over the techniques for completing CNC machining tasks.
Material Preparation
- Select the Correct Material
Choosing the appropriate material is the initial crucial step in preparing for a CNC machining job; it should possess both machinability and sufficient strength to withstand machining forces.
- Cut the material to the following dimensions
After deciding on the appropriate material, the following step is to cut it to size. This is possible using saws, shears, and laser cutters. It is crucial to be precise while cutting the material, as any errors at this stage might have an influence on the final result.
- Edges should be deburred.
After cutting the material to size, it is necessary to deburr the edges. This includes removing any rough edges or burrs from the cutting process. This may be done using a variety of instruments, including sandpaper, files, and deburring tools.
- Make the material clean.
After cutting and deburring, it is essential to perform a meticulous cleaning to eliminate any dirt, grease, or impurities that might hinder the machining process, utilizing various cleaning chemicals such as solvents and degreasers.
- Cinch The Material
After cleaning, the material must be securely secured to the work surface of the CNC machine. This guarantees that the material stays in place during the machining process and that the outcome is exact.
- Prepare the Cutting Tools
They must then be programmed into the CNC machine. This includes selecting the ideal cutting tool for the job, establishing the optimum feed rate and depth of cut, and ensuring that the cutting tool is properly aligned with the material.
CAD/CAM Programming: Understanding and Application
CNC machining projects necessitate the use of programming software such as AD (AutoCAD) and CAM (Computer-Aided Manufacturing). CAM provides tool paths that guide the CNC machine through cutting and shaping the material, whereas AD makes 2D and 3D drawings.
To begin this programming project, you must first create a design in AutoCAD. Drawing the necessary part or component with various tools and techniques is required. When done, the design may be saved in a variety of formats, including DXF and DWG.
After that, the design is loaded into CAM software. This requires starting the CAM program and selecting the file format for the design. The CAM application will then read the file and generate a 3D model of the part or component.
The tool paths are generated once the 3D model has been built. Both must choose the proper cutting tools and plan the path the tools will travel to cut and shape the material. The CAM application will create a G-code file containing CNC machine machining instructions.
The CNC machine configuration process involves creating the G-code file, loading it onto the machine, selecting suitable cutting tools, and ensuring accurate material alignment through calibration.
Once the system is set up, launch the software and commence the machine operation, diligently monitoring and rectifying any issues that may arise during the machining process to safeguard both the material and the machine.
Machining Process

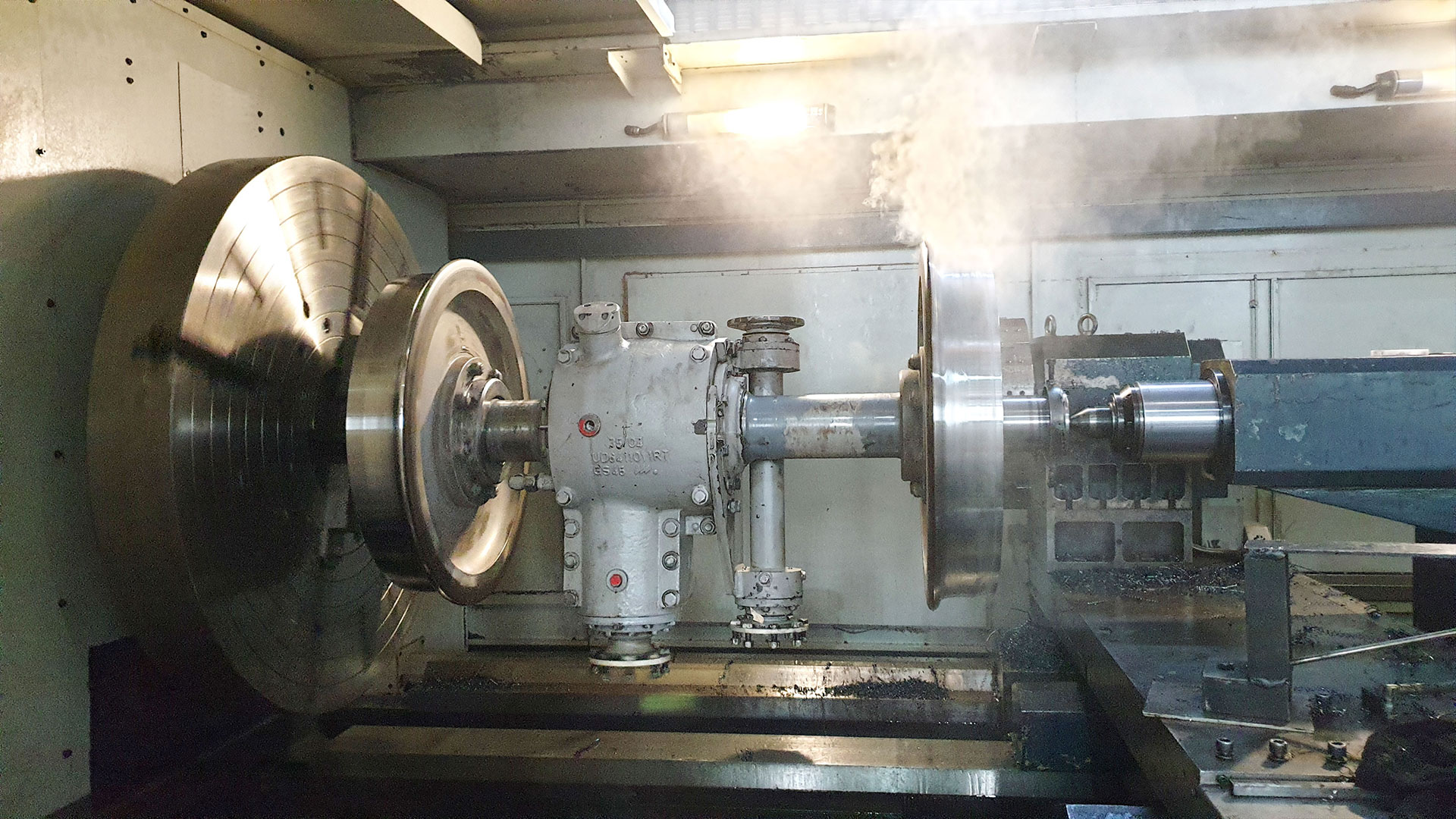

Another crucial element in CNC Machining projects is the main machining process. In this procedure, the material must first be put onto the CNC machine. This requires clamping the material to the machine’s work table or vice. The material must be properly positioned in order to be aligned with the machine’s cutting tools.
After loading the materials, you must set the CNC machine’s cutting tools. This requires selecting the appropriate tools and connecting them to the spindle of the machine. To guarantee perfect cuts and shapes, the cutting tools must be correctly aligned with the material.
After the material and cutting devices have been configured, the application is launched. This requires importing the G-code file created during the programming procedure into the CNC machine’s computer system. The machine will proceed to slice and shape the material, following the instructions outlined in the G-code file.
Once the program is running, you can better monitor the machining process. While you’re observing, make sure the material is properly chopped and molded. Inspecting the cutting tools for wear or damage, as well as monitoring the machine’s motions, ensures that the material is cut properly.
Quality Control And Inspection
Inspection and quality control are the following steps in the CNC machining project procedure. Before commencing the machining process, you must design a quality control strategy. This plan outlines the methods to be employed for ensuring the final product aligns with the prescribed criteria and standards.
After determining your strategy, employ measurement tools such as calipers, micrometers, and gauges to verify the product’s dimensions throughout the machining process, comparing them to the necessary specifications for impeccable precision.
Make certain that the product is inspected at each stage. It will assist you in ensuring that the product is appropriately machined. This includes visually inspecting the product for flaws or defects, as well as using measuring instruments to check measurements and tolerances.
After ensuring that there are no problems during the inspection, utilize SPC to continually monitor the machining process. This tool can assist you in identifying trends or patterns that may indicate a problem. You may help to prevent defects and guarantee that the final product meets the specifications this way.
Following that, the completed product must be inspected to confirm that it meets the criteria and standards. This procedure comprises using measurement instruments and visual examination to evaluate the product’s size, surface polish, and other key qualities.
Finally, during the machining process, you should record and document the outcomes of each inspection and quality control stage. These records will assist you in tracking how certain difficulties may be handled during the processing of CNC machining projects, allowing you to recognize and solve them more quickly in the future.
Operations for Finishing
Finally, finishing is crucial in CNC machining projects because it assures the proper surface polish and appearance. Towards the conclusion of a CNC machining project, consider the following tasks:
- Burrs and sharp edges should be removed: To ensure optimal product performance, it is essential to remove any burrs and sharp edges caused by the machining process. These imperfections can be detrimental and may compromise the product’s functionality. Utilizing deburring tools or alternative methods during the finishing process is recommended for their effective removal.
- Smooth the surface finish: Achieve impeccable surface finish and optimize the appearance and performance of your product by utilizing abrasive materials like sandpaper or polishing chemicals, tailored to meet the specific demands of your project.
- Coatings or finishes: Coatings or finishes like anodizing, powder coating, and painting are essential in CNC machining to safeguard products from corrosion and wear, depending on their intended application.
- Examine the final product: After the finishing process is complete, the product should be evaluated to verify it meets the required requirements and standards. This includes using measurement instruments and visual examination to evaluate the product’s size, surface polish, and other key qualities.
- Product packaging: After final product inspection and approval, it should be securely packed to ensure its preservation throughout transportation and handling. This might include utilizing safe packing materials like foam or bubble wrap and marking the container with important information like component numbers or customer information.
